The sleekest track in our range.

The 1000 provides comfort and support and gives the option of upgrading with powered features. In addition to this the anodized aluminium rail offers a stylish solution with a hidden gear rack. Moreover, the 1000 is the narrowest straight stairlift track on the market which can also be installed outdoors.

All our stairlifts are tested and approved by worldwide independent inspection services. This gives you the assurance that all our products meet the highest standards in terms of quality and safety.

  • A choice of six upholstery colors are available with the 1000.
  • Comes with 2 year manufacturer's parts warranty and Lifetime warranty on the gearbox and motor.

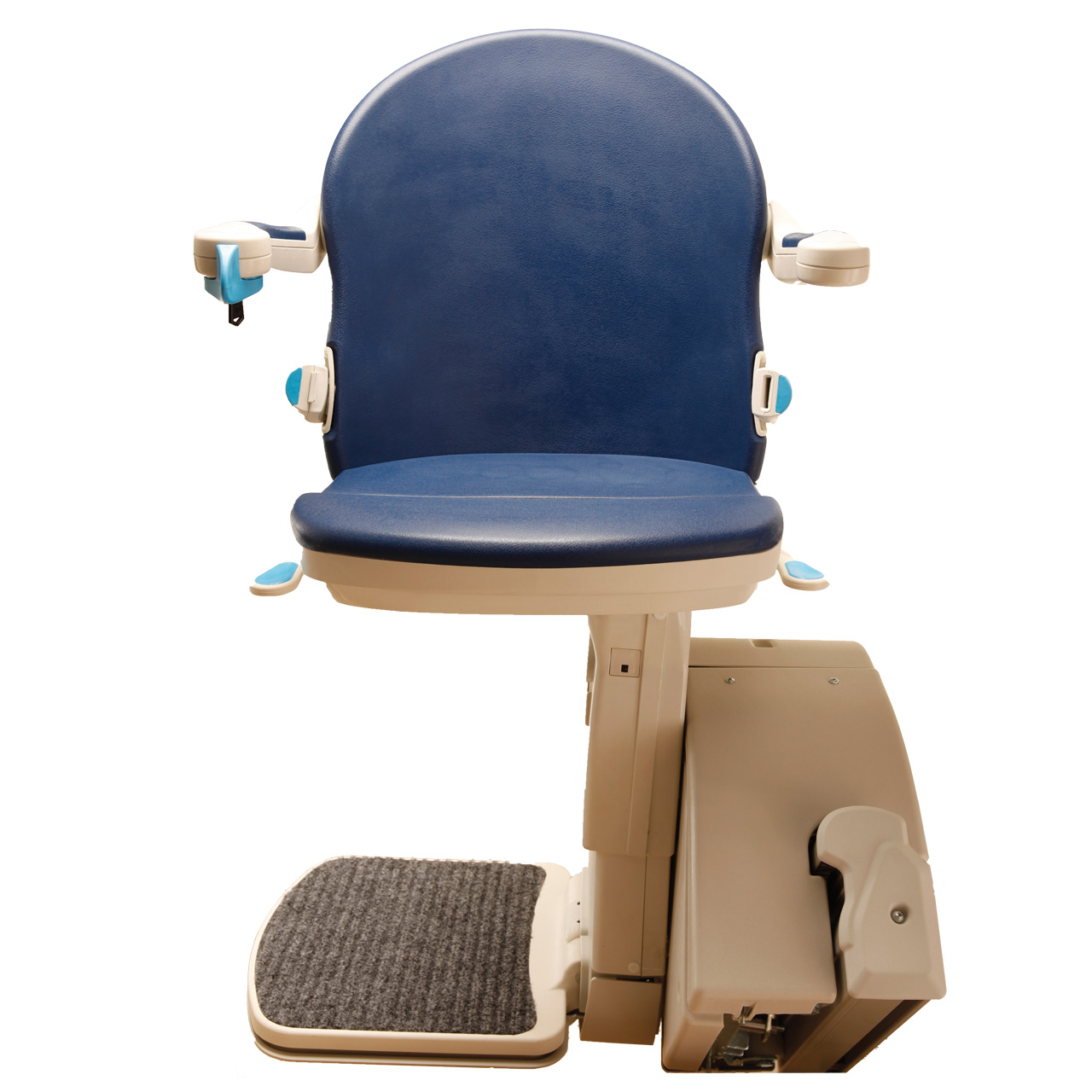

Choose your most convenient seat

The seat for the 1000 is available in two variations to suit individual needs.

Smart seat

The seat is supplied with wipe clean, flame retardant upholstery in a choice of six colors. You can even replace upholstery later should you wish to change your color scheme.

Perch seat

The Perch seat proved the ideal option for users with limited hip and knee flexibility. A Perch seat means that the user is almost in a standing position when they are using the lift. There is a shortened seat and retractable seat belt which provide a stable support area for users to 'perch' on.

Powered Footplate & Swivel

This top of the range system gives you optional powered footplate and powered swivel and has the power to fold itself away then park on its charge point once you have finished using it. This ensures the staircase is always left clear for other users or emergency access and the lift is always left on a charge point.

How about a hinge track?

You need not worry that doorways will be obscured or that tracks will cause excesssive trip hazards. A hinge P Powered Hinge Btrack is optional available for the 1000. The fully automatic hinge track will be raised and lowered without the user having to operate it.

Safety Sensors

All stairlifts have safety sensors on the power pack and footplate: these are designed to stop the lift if it meets any obstruction. Once stopped it can only be moved in the opposite direction of the obstruction.

Key Switch

We also supply our stairlifts with an easily accessible key switch that allows you to disable the lift and prevent unauthorised use so you do not need to worry about unsupervised children playing with your stairlift.

Specifications
A. Minimum swivel radius
 26 ½"
B. Minimum wall to seat back
 3"
C. Seat depth
 16 ¾"
D. Minimum folded width to footplate
 15 ¼"
E. Minimum open width to edge of footplate
 25 ½"
F. Armrest width - external
 21 ¾"
G. Armrest width - internal
 18"
H. Seat back height
 17 ¾"
I. Footplate to seat height
- standard seat option
- perch seat post
18 ¼ - 21 ¼"
26 ¾ - 34 ½
J. Minimum footplate height
 3 ¼"
Bottom parking space required
 21 ½ - 26 ½"
550mm (56°) to 675 at shallow angle (27°)
Minimum track intrusion into staircase
 4 ½"
Minimum track overhang at top of stairs
 3 ½"
Minimum track intrusion at bottom of stairs
 15 ¾"
Maximum weight limit
- heavy duty version
 302 lbs.
350 lbs.
Speed
 4 ¾"m/sec (approx)
Power supply
 24v DC battery
Charger
 100-240v (50-60Hz)
Staircase angle
 56° (52° with hinge)
